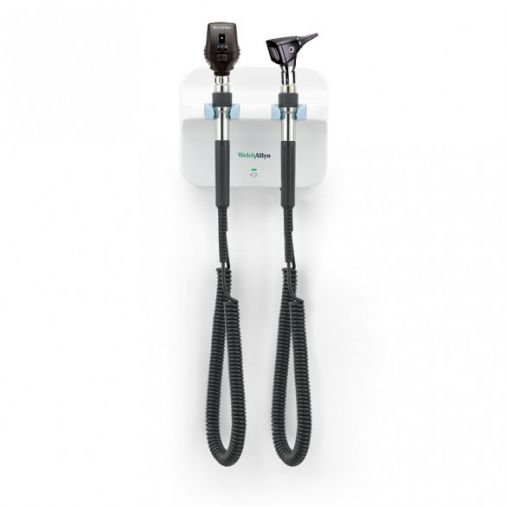

Welch Allyn GS 777 Wall Unit - Coaxial Ophthalmoscope & FO Otoscope

Green Series? 777 Wall Transformer

• Help reduce facility cost with a more energy efficient product
• Help reduce risk of cross contamination by reducing contact with no on/off switch
• Help improve work flow with contoured handles that automatically turn on/off
• Quickly and easily upgrade from the Welch Allyn 767 Wall Transformer to the GS 777 Wall Transformer

11720 | Coaxial Ophthalmoscope

• Halogen light for true tissue colour and consistent, long-lasting performance.
• The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 2 filters can be used in conjunction with any of the above apertures:
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • Polarising filter - virtually eliminates corneal reflection.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

20000 | Diagnostic Otoscope

• The Halogen HPX? lamp provides light output for true tissue colour and consistent, long-lasting performance.
• Fibre optics project cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane.
• The wide-angle viewing lens allows for instrumentation under magnification.
• Insufflation port for manipulation of the tympanic membrane.
• A sealed system for pneumatic otoscopy and accurate diagnosis of otitis media.
• Variable illumination strength via the handle rheostat dial.
• Throat illuminator provides light via a handy built-in penlight.
